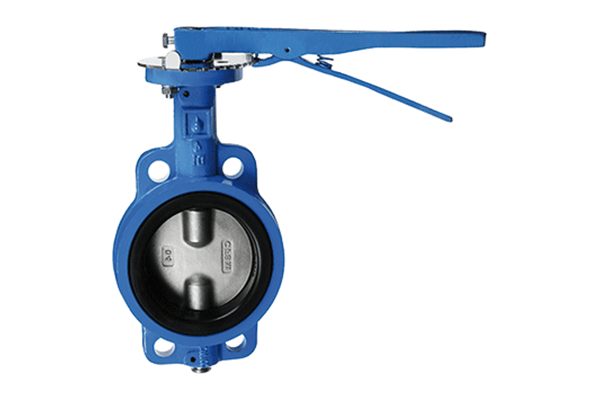

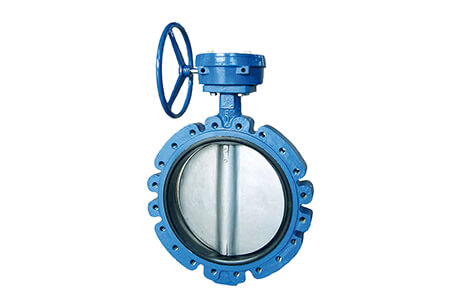

CONCENTRIC TYPE – BUTTERFLY VALVES

Vimec Valves produces concentric type butterfly valves designed to meet various applications in the waterworks.

Design Features

• Self-Centering Disc
• Resilient Seated
• Bi-Directional Tight Shut-Off
• Easy Installation and Maintenance
• Size Range : 2” to 72”
• Rating : ANSI 150#, 300#, – PN10, PN16
• Ends : Wafer Type, Lugged, Semi Lugged, Double Flanged
• Operation : Handwheel, Gear, Pneumatic or Electrical Actuator

Design Standards

• Designs to ANSI B16.34, API 609, BS5155
• Face to face : API 609 / ISO 5752 short
• Flange : UNI/DIN/ISO/ANSI
• Testing to API 598

Materials

Ductile Iron, Cast Iron, Carbon Steel & Stainless Steel
