FORGED STEEL VALVES – GATE, GLOBE, CHECK

Vimec Valves produces a wide variety of Gate, Globe & Check Valves in bolted bonnet & welded bonnet design.

Design Features

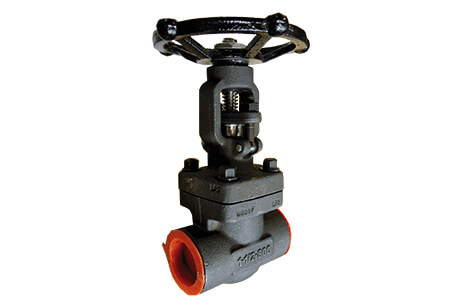

Gate Valves & Globe Valves

• OS & Y and Rising Stem
• Bolted Bonnet / Welded Bonnet
• Solid Wedge
• Bellow Sealed, Angle type Globe Valves

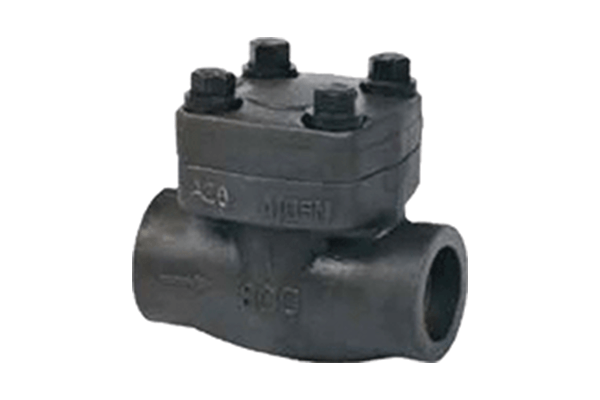

Check Valves

• Bolted Cover & Welded Cover
• Piston Check, Swing Check, Ball Check

Other features

• Size Range : 1/4” to 2”
• Rating :-
  • Threaded / Welded: 800#, 1500#, 2500#
  • Flanged :150# to 2500#
• Ends : Screwed, Socketweld, Flanged RF, RTJ, BW
• Low emission design
• Extended Stem configuration & Angle type bodies
• Cryogenic application upon request
• Operation : Handwheel, Gear, Pneumatic or Electrical Actuator

Design Standards

• Designs to ANSI B16.34, API 602
• Face to face to ANSI B16.10
• Flanges to ANSI B16.5
• Material according to NACE MR-0175
• Testing to API 598

Materials

• Carbon Steel, Stainless Steel, Low Temp, Alloy & Duplex Steel.
• Special Testing such as IGC, HIC, Fugitive Emission ISO 15848
• Part 1 & 2 and also Special painting is offered upon request.
